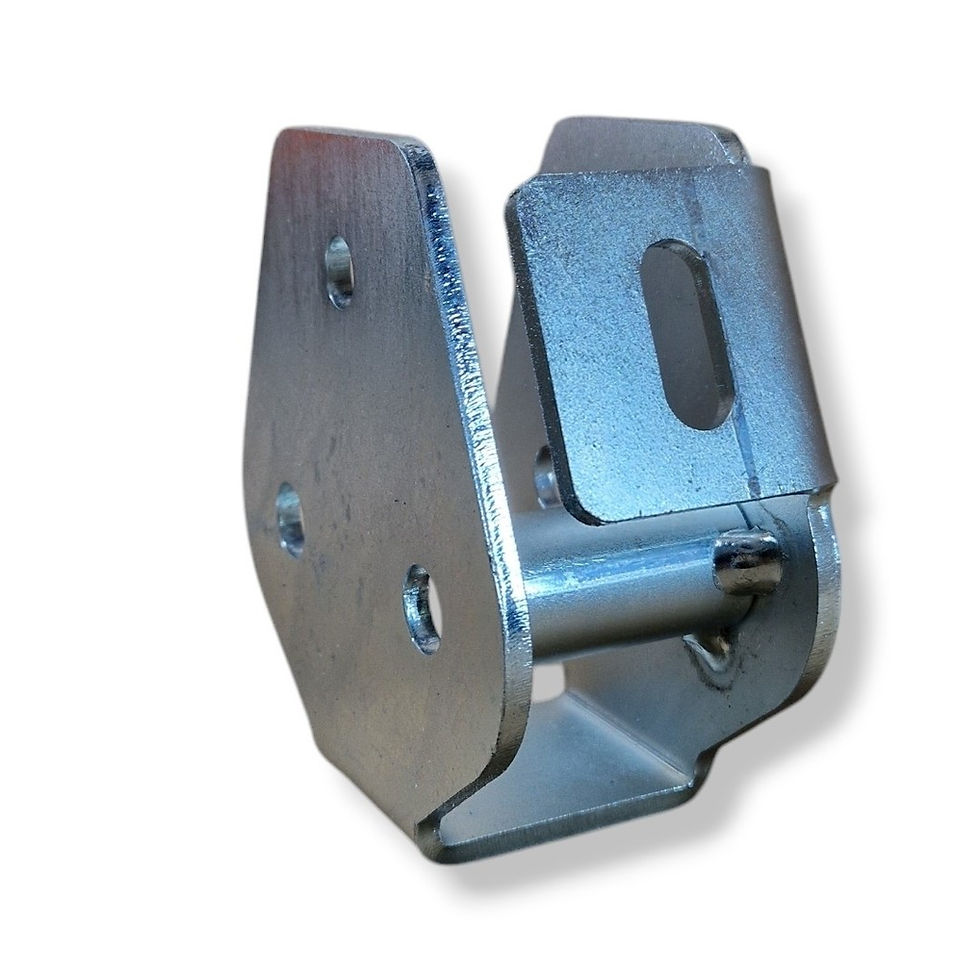

Ratel-X Industries® Discovery 2 Rear Shock Relocation Droppers are precision engineered to relocate the lower mounting point of your rear shock absorbers. This will gain you 2 inches of downward flex on your rear axle.

Rear shock travel is lost when installing lift blocks on your vehicle, installing our shock droppers regains 2 inches of travel by raising the lower shock mount. Longer Bump stops may also be required to avoid the springs from being over-compressed or shockers from bottoming out.

Manufactured in the United Kingdom

4mm Thickness Structural S275JR Grade Steel

Electro-Galvanised and Yellow Passivated to protect against corrosion

Designed to fit all Land Rover Discovery 2 Td5 & V8 models

ALL FIXINGS INCLUDED & some drilling is required

Weight 1.6kg

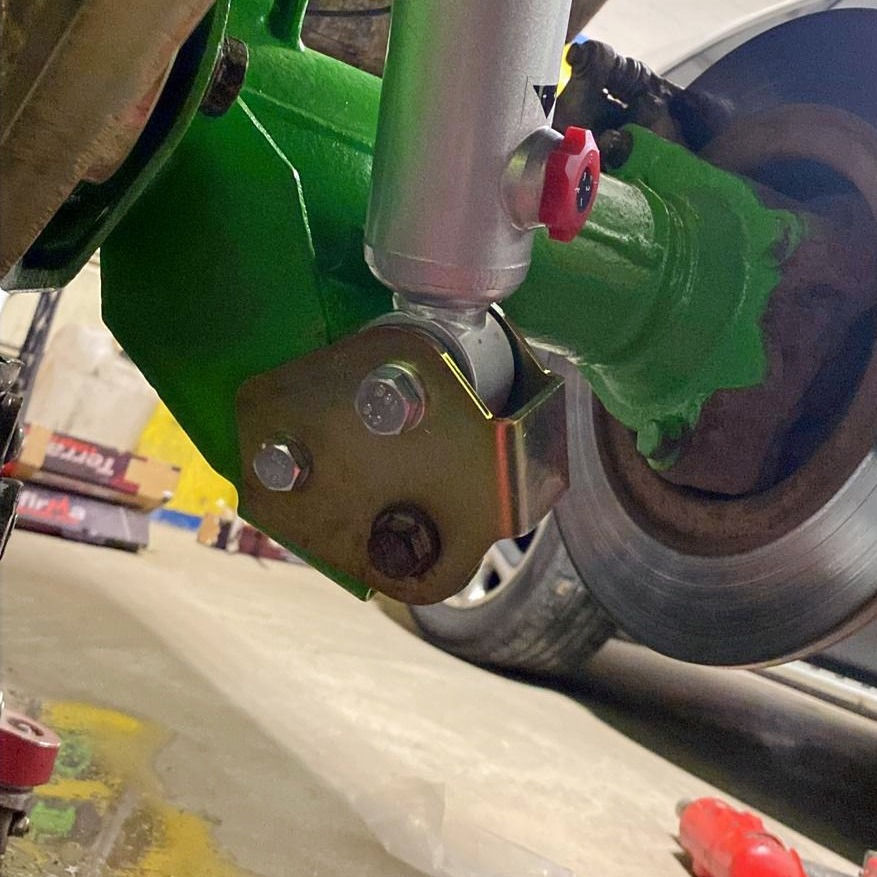

Fitting is done in the following order, and note the brackets are handed so the plate side with 3 holes goes outside the original bracket on the side without a bend.

First remove the lower rear shock eye bolt, insert the bracket and loosely drop the M10x30 bolt through the slot at the bottom. Put the original shocker bolt through the bracket and back into the captive nut, once done the Bottom M10x30 bolt can be tightened.

Once both these bolts are tight you can drill the additional hole on the side of the bracket that has 3 holes. This will receive the second M10x30 bolt which can then also be tightened.

Now that your bracket is fitted you can attach the lower rear shock mounting to the new mounting holes which will be 50mm higher than the original position. New M12 Bolts and nuts are supplied with the kit for this stage.

LIKE, FOLLOW & TAG US ON FACEBOOK and INSTAGRAM @ratelxindustries

Discovery 2 Rear Shock Droppers 2 inch (Td5 & V8)

SKU: 3115
£48.50Price
  • Please note that all our Ratel-X Industries products are designed for off road use only.

    The effectiveness of this equipment is directly related to the manner in which it is installed, used, and/or maintained. Proper installation, use and maintenance is solely the responsibility of the installer/user, and will not be assumed by Ratel-X Industries.

    Ratel-X Industries accepts no liability for loss, damage, injury or death caused by and/or resulting from the use of our parts or products.
